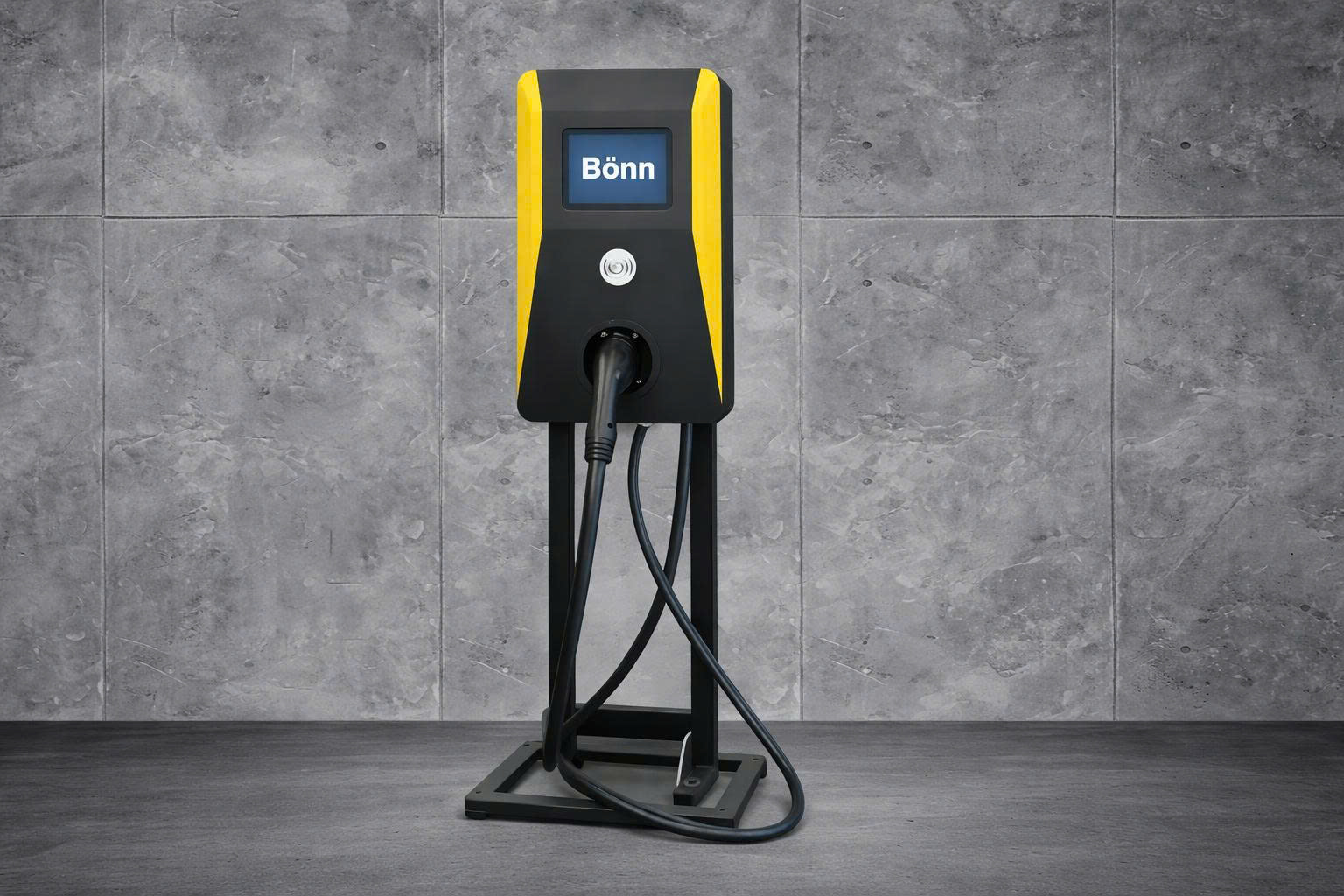

Model

BONN-DC30

Dimension

459 x 236 x 734

Input

Rated input voltage

380Vac/ 400Vac/ 415Vac

Range of input voltage

304V~456V

Input AC limiting voltage

600V

Input frequency

50/60Hz; Range:45Hz~65Hz

Input PF

≥0.99

Output

Interface

CCS2

Output voltage

150-1000Vdc

Output current

100Amax

Display

10.4’’ touch screen

Card reader

Type A, Type B, MF1, PSAM, ESAM

Network interface

Standard Configuration:

LAN

Optional:

4G/ Wi-Fi

Communication protocol

OCPP1.6J

Environment

Indoor/Outdoor

Operating temperature

-20℃~+60℃

Relative humidity

≤95%, non-condensing

Altitude

2000m

Noise

<55 dB

Protection degree

IP54    IK10
