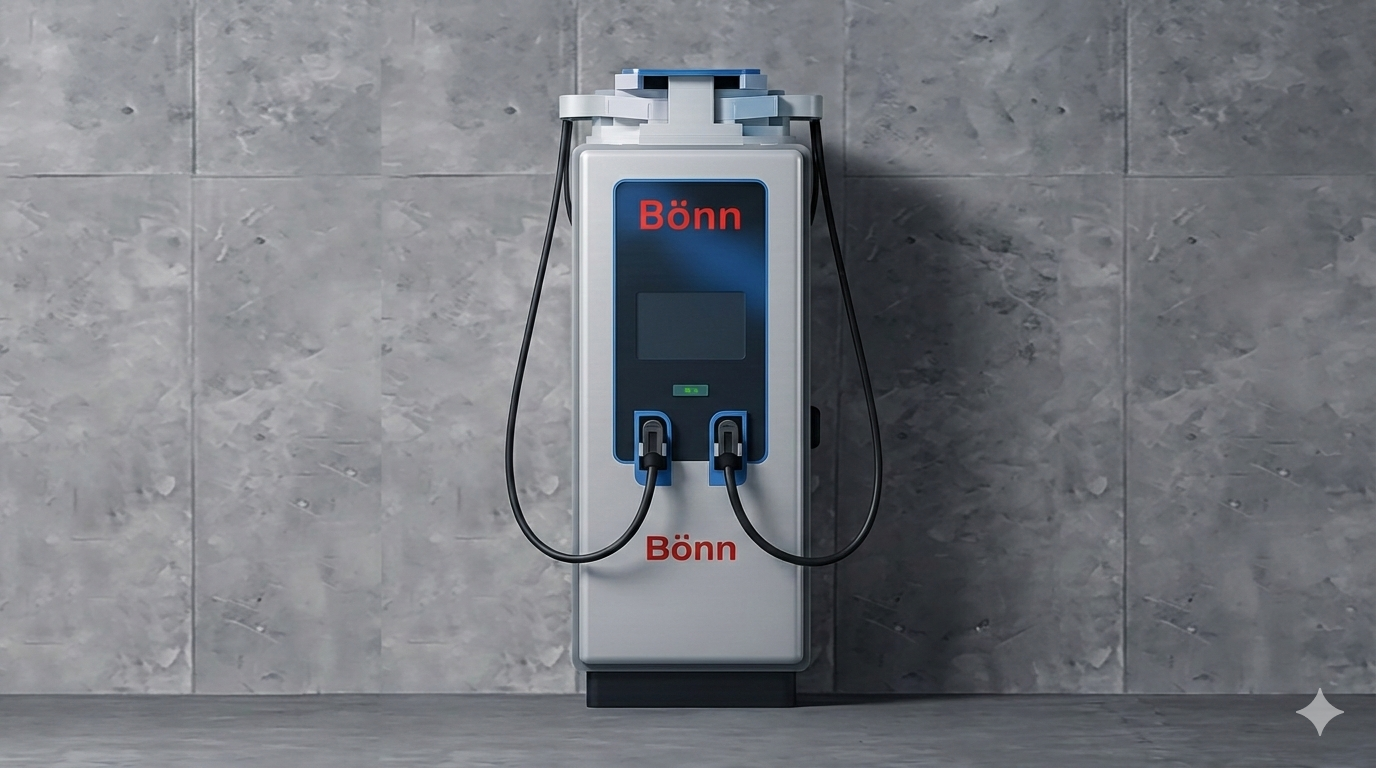

Model

BONN-DC200

AC Input

Power connection

3P + N + PE

Voltage range

400 Vac ± 10 %

Frequency

50 Hz or 60 Hz

Nominal input current & power

305A

Power factor

> 0.99

Standby consumption

< 80 Watt

Overall efficiency

97%

DC Output

Voltage

50Vdc – 1000Vdc

Max Current

300A

Nominal Power

200kW

General Specifications

Output mode

Mode-4

Connectors

2× CCS2 (All Cable with Connectors and simultaneous Charging for all 2 Connectors)

Mounting

Floor Stand

Dimensions

2245.8H × 800T × 850W (mm)

Weight

350 kg

Cable Length

5m as standard, longer as optional

Shell Material

Sheet Metal

Display

15” TFT capacitive touch screen (43 inch as optional)

Push button

Built-in Emergency stop (cut off at magnetic)

Interface

RFID: Mifare, QR code and Remote Access

Network & Environment

Network connection

4G | LAN | Wi-Fi (Auto Switching from 4G to Wi-Fi when the signal lost)

Communication Protocols

OCPP1.6J (OCPP 2.0 upgradable)

Environment

Indoor / outdoor

Operating temperature

-20°C ~ +50°C (derating to 20% above 50°C)

Storage Temperature

-40°C to +60°C

Power Meter

Permissible error: 0.5%
Resolution: 0.001 kWh

Display

1024 × 768
Support VDO play, MP4 etc

Operating humidity

≤95% non-condensing

Cooling

Forced-Air Cooling

Altitude

Up to 2000 m

Ingress Protection (IP / IK Rating)

IP54, IK10

Acoustic noise

< 65 dB

Compliance and safety

CE, IEC EN 61851-1, IEC EN 61851-23, IEC EN 61851-21-2, IEC 62196-1, IEC 62196-3, DIN 70121, ISO 15118

Protection

Over/Under Voltage Protection, Overload Protection, Current leakage Protection, Lightning Surge Protection, Over Temperature Protection, Short circuit protection, Communication Interference Interruption Protection and Reset.

Earth Leakage Protection

DC part: isolation transformer

Features

1. support dynamic load for two EV cars charging power sharing automatic as 0/200, 40/160, 80/120 kW
2. include CMS: swing type
3. support charger history log more than 30 days.
4. support multilingual Language
5. Push Button cut off at Magnetic Contactor and Charger could be back to work after release button without any resetting.
6. Support charging two car at the same time.

Warranty

01 year warranty
